  • Router Kit GRBL Control 3 Axis Plastic Acrylic PCB PVC Wood Carving Milling Engraving Machine with Offline Controller, XYZ Working Area 300 x 180 x 45mm

Router Kit GRBL Control 3 Axis Plastic Acrylic PCB PVC Wood Carving Milling Engraving Machine with Offline Controller, XYZ Working Area 300 x 180 x 45mm

111.97
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description
          • New Version: Genmitsu Cnc 3018-Pro Is An Upgraded Version Of 3018. All Components Do Not Need To Be Positioned, Which Greatly Reduces The Difficulty Of Assembly And Improves The Working Accuracy. The Base Height Is Raised To 4Cm For Better Stability. Capable Of Cutting All Types Of Plastics, Soft Aluminum, Woods, Acrylics, Pvcs, And Pcbs, The Genmitsu Can Be Used On A Wide Range Of Projects And Materials

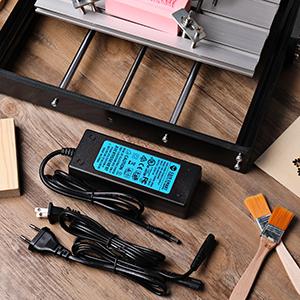

          • Upgraded Power Adapter: Ul Approved And Out-Of-The-Box Support For The Drop In 20,000Rpm Spindle, No Need To Modify G-Code To Ramp Up To Full Speed
          • Controller Software: The Genmitsu 3018-Pro Uses Grbl, A High-Performance Open-Source Software For Controlling Movement, And Runs On Arduino. Its Dependability And Simplicity Make Grbl An Industry Standard, So There’S No Lack Of Support And Resources Available When You Get Stuck. Includes Carveco Maker Cam Design Software And Candle For Controlling Your Machine And Running Your Gcode Design Files



          Item Weight ‎15.33 pounds
          Product Dimensions ‎7.09 x 0.01 x 11.81 inches
          Thickness ‎0.1 Millimeters
          Power Source ‎Corded Electric
          Voltage ‎24 Volts
          Horsepower ‎120
          Item Package Quantity ‎1
          Included Components ‎Wood Carving Milling Engraving Machine

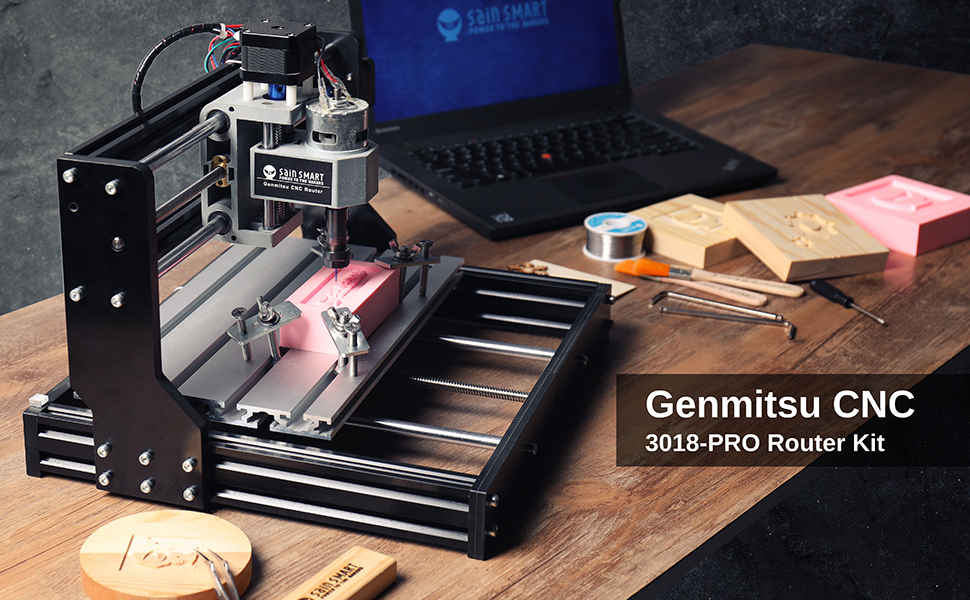

          Genmitsu 3018-PRO CNC Machine

          Designed for the absolute beginner, the Genmitsu is a great tool for starting CNC learning. If wood-working is your hobby, you can use it to add features like curved words and exquisite patterns. If you are a student just learning CNC, it can help you engrave models that you are coding and designing.

          It is capable of cutting all types of plastics, soft aluminum, woods, acrylics, PVCs, and PCBs, and a wide range of other materials. You will find the SainSmart Genmitsu an excellent self-learning tool that allows you to DIY your great projects on a cost-effective platform without the risk of damaging expensive equipment.

          SPECIFICATIONS

          Effective Engraving Area 300 x 180 x 45 mm(11.8 x 7.1 x 1.8”)
          Frame Size 400 x 330 x 240 mm(15.7 x 13.0 x 9.4")
          Frame Material PF+ Aluminum
          Z-Axis Component Material Nylon
          Spindle 775 motor, 24V, 1000 RPM
          Rated power 60W; Maximum power: 120W
          Step Motor 1.3 A, 12V, 0.25 Nm torque (2.2 in lb)
          Drill Bits Tip 0.1 mm, 20 degree, Diameter 3.175 mm
          Supported OS Windows XP, Windows 7, Windows 8, Windows 10, MAC OS
          Software Grbl control(Candle)
          Power Supply 24V/5A

          3018-PRO
